Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: OEM acceptable
  • Model Number: TU0850-100M
  • Material: thermoplastic polyurethane, 100% Thermoplastic polyurethane
  • Specification: 8mm*5mm
  • Length: 100m, 100m/roll or 200m/roll
  • Thickness: 1.5mm
  • Standard: ROHS& ISO9001
  • Operating temp: -20cntidegree to +80centidegree
  • Item Use: air pipe ,water hose ,US FDA hose
  • Original place: Shanghai (factory)
  • Tolerance: +0.05 to -0.05
  • Quality gurantee: 3years
  • Pack: roll in plastic reel
  • Hose bevelling radius: 20mm
  • Hose abrasion: 35g

Packaging & Delivery

Packaging Details cartons.
Delivery Time 10days

MATERIAL DESCRIPTION:

 Thermoplastic resin-amino acid (commonly known as TPU) is contained by the NCO functional groups of MDI and contain OH functional groups of polyol, extending from the mixing of extrusion, with amino acid lipid gene polymers.





PU HOSE series (ester,flexible ester,ether,Flame retardant,anti-static,UV resistant)

Technical date

     series

PU

PU-S

PU-M

PU-FR

PU-AS

PU-UV

          material

  polyurethane

  polyurethane

   polyamine ether

       Flame retardant

   Anti-Static

         UV Resistant

            Fluid

       AIR

       AIR

         Air,water

         AIR

         AIR

         AIR

   maximum operating pressure

0 - 10 bar

0 - 8 bar

0 - 8 bar

0 - 8 bar

0 - 8 bar

0 - 8 bar

      Execution standard

ROHS

ROHS

resistant hydrolysis, antibiosis ,mould proof

UL-94  V-0

109 - 1012 Ω

        Level four

operating temperature

-20℃ to 70℃



Note:On above table the maximum operating mean at 20 - 25, and at 65% (RH)  relative humidity. When at other temperature use, please adjust it by working pressure, when temperature getting higher,pressure will getting lower (include flow media temperature in the hose and ambient temperature around the hose.)



ORDER ITEM NO:

FOR EXAMPLE: PU-FR0850-100M

OD:8mm * ID: 5mm -100 meter

PU FLAME RETARDANT HOSE


ITEM NO


O.D  (mm)


I.D (mm)

Meter/roll

Burst pressure
kgf/cm2
@ 20℃

Burst pressure
kgf/cm2
@ 60℃

Burst PSI
@ 75°F

Burst PSI
@ 140°F

PU0320-200M

3

2

200

34

19

435

270

PU0425-200M

4

2.5

200

38

21

492

305

PU0530-200M

5

3

200

37

21

480

297

PU0640-200M

6

4

200

31

17

401

251

PU0840-100M

8

4

100

48

25

633

363

PU0850-100M

8

5

100

32

19

414

268

PU0855-100M

8

5.5

100

28

16

365

219

PU0860-100M

8

6

100

21

11

295

162

PU1065-100M

10

6.5

100

31

18

392

286

PI1075-100M

10

7.5

100

26

15

335

216

PU1280-100M

12

8

100

31

17

405

248

PU1295-100M

12

9.5

100

24

14

313

203

PU1410-100M

14

10

100

20

11

255

159

PU1612-100M

16

12

100

17

10

216

135

PU1611-100M

16

    11

      100

24

14

315

      205

PU1/8”-200M

1/8"

0.066"

200

43

24

585

355

PU3/16”-200M

3/16"

0.188"

200

35

19

455

275

PU1/4”-200M

1/4"

0.17"

200

34

15

435

210

PU3/8”-100M

3/8"

1/4"

     100

31

17

408

252

PU1/2”-100M

1/2"

0.32"

100

34

17

438

242

BURST TEST.HYDROSTATIC WATER PRESSURE75°F&140°F



Note:Safety Factor between BP and WP:3:1

PERFORMANCE DATA:

1)Temperature and the working environment (temperature): -40 ℃ ~ +80 ℃ (non-chemical gas space)
Fluid temperature range: -15 ℃ ~ +60 ℃ (not ice over)

2) Diameter tolerance: ± 0.1mm ~ ± 0.15mm

3) Hardness: Shores 95A / 98A (according to season and region)

4)    Tensile strength: 400kgf/cm2 (5690 P

5)     Elongation limit: 490-590%

6)    Resistant to wear and tear of: 35mg

7)   Tear strength: 110kg/cm2 (1565 PSI)

8)   Blasting pressure and the pressure to work long hours for the safety factor ratio: 3:1

9)   Minimum bending angle:
3 * 2-12 ℃ ;4 * 2.5-12 ℃ ;5 * 3-33 ℃ ;6 * 4-35 ℃ ;8 * 5-39 ℃ ;8 * 5.5-46 ℃ ;10 * 6.5-43.5 ℃ ;10 * 7.5-42 ℃ ;12 * 8-37 ℃; 12 * 9.5-54 ℃ ;14 * 10-70 ℃ ;16 * 12-70 ℃.

SUPERIOR FEATURES:

excellent flexibility.

bend radius less resistance around the song.

high elastic recovery memory effect.

resistant to wear and tear, impact.

part of the resistance can not corrosive chemicals and oils.

Resits fuels and can be spliced.

100% incineration. approved by scientific Eoology Group.





MATERIAL DESCRIPTION:

Thermoplastic resin-amino acid (commonly known as TPU) is contained by the NCO functional groups of MDI and contain OH functional groups of polyol, extending from the mixing of extrusion, with amino acid lipid gene polymers.



APPLICATION

 Pneumatic tools
  Pneumatic Piping
  Instrumentation
  Lube Lines
  Transfer Chemicals With No Erosive Nature
  Process Control
  Automated Assemblage Lines
  Laboratory
  Robotics
  General Industry Water And Garde







PERFORMANCE DATA:

1) Temperature and the working environment (temperature): -40 ℃ ~ +80 ℃ (non-chemical gas space)
Fluid temperature range: -15 ℃ ~ +60 ℃ (not ice over)

2) Diameter tolerance: ± 0.1mm ~ ± 0.15mm

3) Hardness: Shores 95A / 98A (according to season and region)

4) Tensile strength: 400kgf/cm2 (5690 PSI)

5) Elongation limit: 490-590%

6) Resistant to wear and tear of: 35mg

7) Tear strength: 110kg/cm2 (1565 PSI)

8) Blasting pressure and the pressure to work long hours for the safety factor ratio: 3:1









APPLICATION:



Pneumatic tools
Pneumatic Piping
Instrumentation
Lube Lines
Transfer Chemicals With No Erosive Nature
Process Control
Automated Assemblage Lines
Laboratory
Robotics
General Industry Water And Garden







PU TUBE / PU HOSE COLORS

 Any color is custom-made according to Panton color ,the following standard colors also for you refer :
















ISO9001:2008

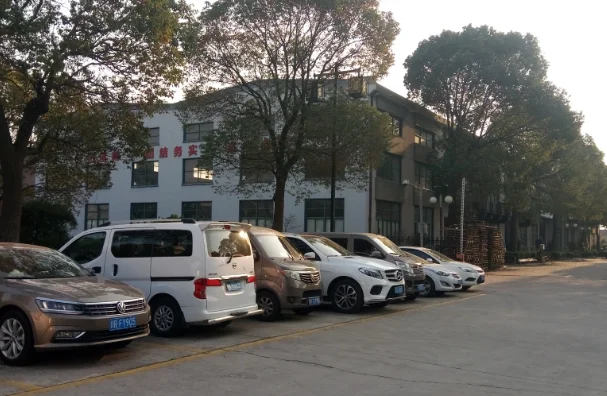

Company Information

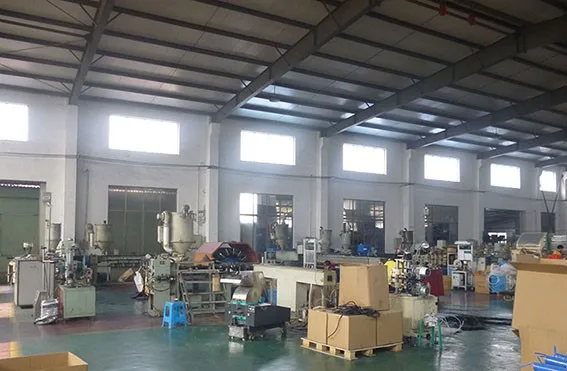

 Factory Confirmation for production-  PU Hose ,PU Air Hose ,Pneumatic Polyurethane hose ,Flexible pu tube





NOTES FOR INSTALLATIONAND UTILIZATION PU TUBING



1,Ensure that PU tube O.D and I.D should be fit to the standard size marked on the pipe.The hose wall thickness on the cross-section of PU cutting should be meet the standard with the number marked on the pipe.The calculating methodology of wall thickness (O.D - I.D) / 2 = wall thickness,the standard error is based on the Nationals standard.



2, Please test before proceed with an installation,to ensure the wall thickness on the cross-section whether it is smooth after cutting?Otherwise,it should be tested as if there is error being found out of the standard.



3, Please check it before proceed with an installation,please dont proceed with any installation or use it if there is bubble,or black point


FAQ

Q1: Are you a factory or trading company?

<Chuya>:We are a factory and have 10 years producing and sales experience in domestic and abroad .Our factory located in N3238 Rd ,Zhelin Town,Fengxian Region,Shanghai ,Welcome visit our factory .



Q2:What the nearest delivery port ?

<Chuya>: The nearest port is Shanghai, very convenient port and low cost, and no need to transportation goods to other port ,save more time and cost for customer .Factory In Shanghai, also very convenient for customers to visit our factory.



Q3: How can I get some samples?

< Chuya >: We are honored to offer samples for customer to test and check products quality. Samples are free, however, the freight cost can be negotiated by each other . We also can provide special custom-made pu size and different pu hose shape .



Q4: What's the certificate do you have for the products?

Chuya >:  Our products confirm ROHS ,REACH also have FDA series products ,we have ISO9001:2008 quality management system to control quality .Our products also authorized and confirmed by the third part office.Quality is everything for us !





Q5: What is your payment term?

< Chuya >:30% TT in advance, the balance payment before shipment ,also can be negotiated with us .



Q6: What’s your delivery time?

< Chuya >: For our regular and our brand "MICO ,UNION" products, the goods can be provided anytime .We also have custom-made logo products ,as uaul 7-30 days ,it depends on quantity .
